Unlocking the Power of Active Directory-Integrated Zones: Exploring Benefits and Advantages

Hello friends. I hope you are all well and enjoying your time. Today, we’ll delve into the topic of AD-integrated zones, exploring its benefts and advantages.  I have already written a post on it but have revamped the content to include latest information, making it more relevant. Before we dive into the details, let’s quickly review the basics of DNS and zones.

Windows Server supports four types of zones:

• Standard Primary –  This zone has a read/write copy of zone data, allowing changes to be made in the primary zone and replicated to secondary zones. Primary zone stores a writable master copy of a zone as a text file that ends with the .dns extension, and the default location of these files is %SystemRoot%\System32\Dns, although we can change it. For example, if the name of the domain is vinitpandey.com, then the text file name will be vinitpandey.com.dns. You can open this file with notepad and check the entries.
• Standard Secondary – It contains a read-only copy of zone data, providing redundancy and load balancing. Changes made in the primary zone are replicated to secondary zones through zone transfers.
• Stub Zone – It stores partial zone data, including A, SOA, and NS records, to identify the authoritative DNS servers for the zone. Although it lacks complete information about the hosts in the zone, it can forward queries to the authoritative name servers.
• Active Directory-Integrated zone – Let’s discuss it in detail.

AD-Integrated zone stores data in AD database as container objects. A container is created for each DNS zone and its class is dnsZone. The dnsZone object contains a DNS node object for every unique name within that zone. The class of these objects is dnsNode. The dnsNode objects have multiple attributes associated with them.

Replication mechanism

Introduced in Windows 2000, AD-integrated zones utilize application partitions for replication since Windows 2003. When configuring AD-integrated zones, two application partitions are automatically created: DomainDNSZones and ForestDNSZones. DomainDNSZones replicates zone data to all DNS servers in the domain, while ForestDNSZones replicates data to DNS servers across the entire AD forest. Manual creation of application partitions using dnscmd or ntdsutil commands is also possible, enabling controlled replication among DNS servers associated with those application partitions.

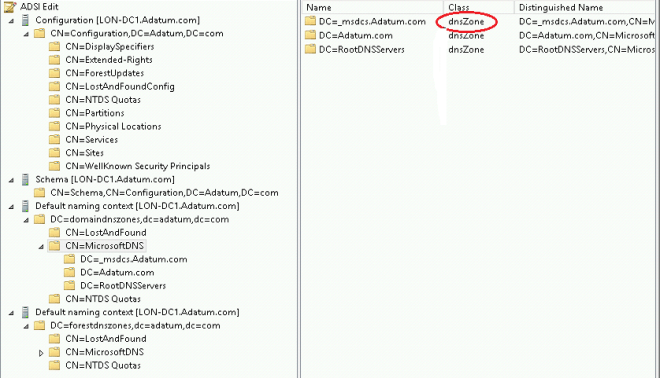

To check the contents of DomainDNSZones and ForestDNSZones, the steps are as follows :

• Open ADSIEDIT from the Tools menu in Server Manager.
• Right-click ADSIEDIT and select Connect To.
• In the Connection menu, choose “Select or type a Distinguished Name or Naming Context.”
• Type “DC=DomainDNSZones,DC=<domainname>,DC=com” (to check ForestDNSZones, replace DomainDNSZones).
• Expand CN=MicrosoftDNS and browse the contents

Before going into the advantages of AD-integrated zone, there are few points that need to be noted:

• AD-integrated zone can only be configured on domain controllers.
• With Active Directory–integrated zones, each domain controller configured as a DNS server in a domain is an authoritative server for that domain. So, DNS records can be updated on any of these servers and the changes will be automatically replicated.

The advantages of using AD-Integrated zone are as follows:

1. Replication efficiency: In AD Integrated Zones, DNS zone data is stored in AD’s distributed database. This enables the utilization of AD’s robust replication mechanisms for DNS data replication. AD replication ensures that changes to DNS records are efficiently propagated across multiple domain controllers, enhancing data availability and reducing network latency. Additionally, AD replication supports incremental changes, reducing the bandwidth requirements for DNS synchronization.
2. Fault Tolerance and High Availability : AD Integrated Zones benefit from the inherent fault tolerance and high availability features of Active Directory. By replicating DNS data across multiple domain controllers, AD provides built-in redundancy. In the event of a domain controller failure, other domain controllers can seamlessly handle DNS requests, ensuring uninterrupted DNS services for clients.
3. Improved Security : If secure dynamic update is enable only authorized clients can update their records in DNS zone which counters the issue of proxy records update. AD integrated zone also offers other DNS security features as dynamic updates, secure dynamic updates, DNSSEC which can be effectively integrated within AD environment.
4. Single Point of Authentication: AD Integrated Zones provide a single point of authentication for both DNS and AD services. This means that users can utilize their AD credentials to access DNS services, reducing the need for additional authentication mechanisms. This streamlined authentication process enhances security and simplifies user management
5. Automatic Updates: New domain controllers are automatically updated without the need for manual zone transfers
6. In locations which are geographically apart, AD sites can be configured to control replication and schedule it during off hours. AD-integrated zone are also part of AD database so their replication also get controlled.

In conclusion, Active Directory Integrated Zones offer significant advantages for organizations seeking streamlined DNS management, enhanced security, and improved network performance. By integrating DNS with the AD infrastructure, administrators can simplify administration, benefit from single-point authentication, and leverage AD’s robust replication and fault tolerance mechanisms. I hope you found this information helpful. Stay tuned for more exciting content. Have a great day!
